🧰 Web server and gateway setup (Dev)

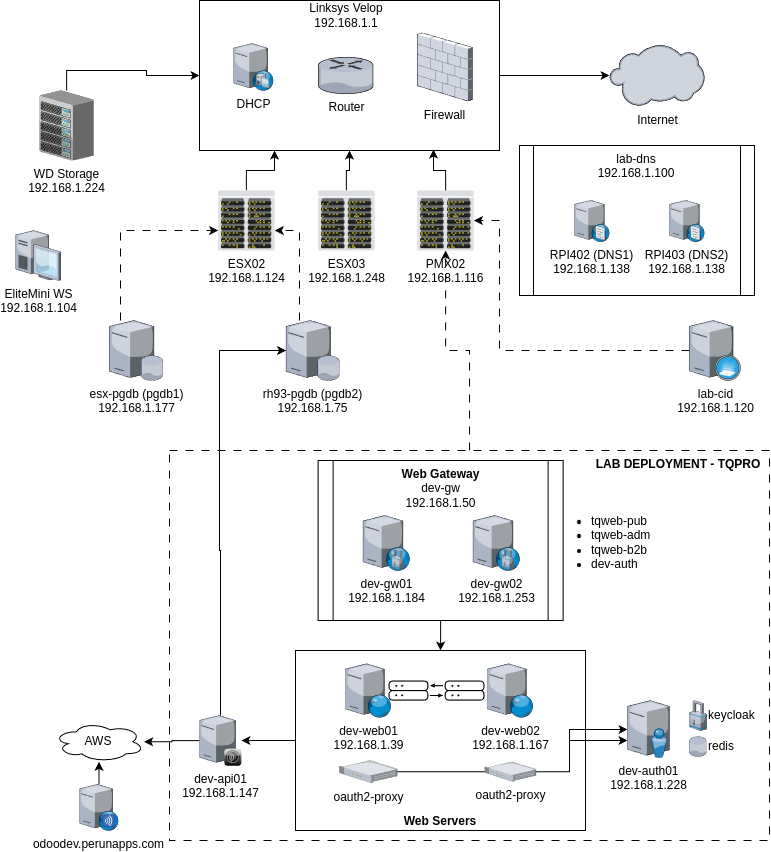

This document contains the full setup guide for:

• Web servers (dev-web01, dev-web02)
• Gateway servers with HA using Keepalived (dev-gw01, dev-gw02)

---

🌐 Web Server Setup (dev-web01, dev-web02)

Web Roots

App	Path
tqweb-pub	/var/www/html
tqweb-adm	/var/www/html-adm
tqweb-b2b	/var/www/html-b2b

API Proxying

• All web apps proxy /tq-api/ to backend API servers:
  • dev-api01:8080
  • dev-api02:8080
• Handled at the web server level, not gateway

---

📄 NGINX Configuration Files (Web Servers)

/etc/nginx/sites-available/tqweb-pub.conf

server {
    listen 80;
    server_name tqweb-pub.vanevski.net;

    root /var/www/html;
    index index.html index.htm;

    location / {
        try_files $uri $uri/ =404;
    }

    location /tq-api/ {
        proxy_pass http://tqapi_backend/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        rewrite ^/tq-api/(.*)$ /$1 break;
        proxy_connect_timeout 10;
        proxy_read_timeout 30;
    }
}

upstream tqapi_backend {
    server dev-api01:8080;
    server dev-api02:8080;
}

/etc/nginx/sites-available/tqweb-adm.conf

server {
    listen 80;
    server_name tqweb-adm.vanevski.net;

    root /var/www/html-adm;
    index index.html index.htm;

    location / {
        try_files $uri $uri/ =404;
    }

    location /tq-api/ {
        proxy_pass http://tqapi_backend/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        rewrite ^/tq-api/(.*)$ /$1 break;
        proxy_connect_timeout 10;
        proxy_read_timeout 30;
    }
}

upstream tqapi_backend {
    server dev-api01:8080;
    server dev-api02:8080;
}

/etc/nginx/sites-available/tqweb-b2b.conf

server {
    listen 80;
    server_name tqweb-b2b.vanevski.net;

    root /var/www/html-b2b;
    index index.html index.htm;

    location / {
        try_files $uri $uri/ =404;
    }

    location /tq-api/ {
        proxy_pass http://tqapi_backend/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        rewrite ^/tq-api/(.*)$ /$1 break;
        proxy_connect_timeout 10;
        proxy_read_timeout 30;
    }
}

upstream tqapi_backend {
    server dev-api01:8080;
    server dev-api02:8080;
}

---

🚪 Gateway Setup (dev-gw01, dev-gw02)

• NGINX: SSL-offloading reverse proxy
• Keepalived: HA setup with floating IP 192.168.1.10
• OS: Ubuntu Server 22.04
• Interface: ens18

---

🧰 Keepalived Setup

Install:

sudo apt update
sudo apt install keepalived -y

/etc/keepalived/keepalived.conf on dev-gw01:

vrrp_instance VI_1 {
    state MASTER
    interface ens18
    virtual_router_id 51
    priority 101
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass vaneSecret
    }

    virtual_ipaddress {
        192.168.1.10
    }
}

On dev-gw02, change:

• state BACKUP
• priority 100

Start:

sudo systemctl enable keepalived
sudo systemctl start keepalived

---

🔒 NGINX Gateway Configs (example for tqweb-pub)

/etc/nginx/conf.d/tqweb-pub-ssl.conf

server {
    listen 80;
    server_name tqweb-pub.vanevski.net;
    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name tqweb-pub.vanevski.net;

    ssl_certificate /etc/ssl/certs/vanevski.net.crt;
    ssl_certificate_key /etc/ssl/private/vanevski.net.key;

    location / {
        proxy_pass http://backend_pub;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

upstream backend_pub {
    server dev-web01:80;
    server dev-web02:80;
}

Repeat similar configs for tqweb-adm and tqweb-b2b, using separate upstreams.

---
